How to Adjust Concealed Kitchen Cabinet Hinges

Concealed kitchen cabinet hinges offer a sleek and modern look to your cabinetry. However, adjusting them correctly is essential for the smooth operation of your cabinets. Here's a step-by-step guide on how to adjust concealed kitchen cabinet hinges:

Materials you'll need:

Screwdriver
Philips head bit
Flathead screwdriver

Step 1: Identify the Hinge Type

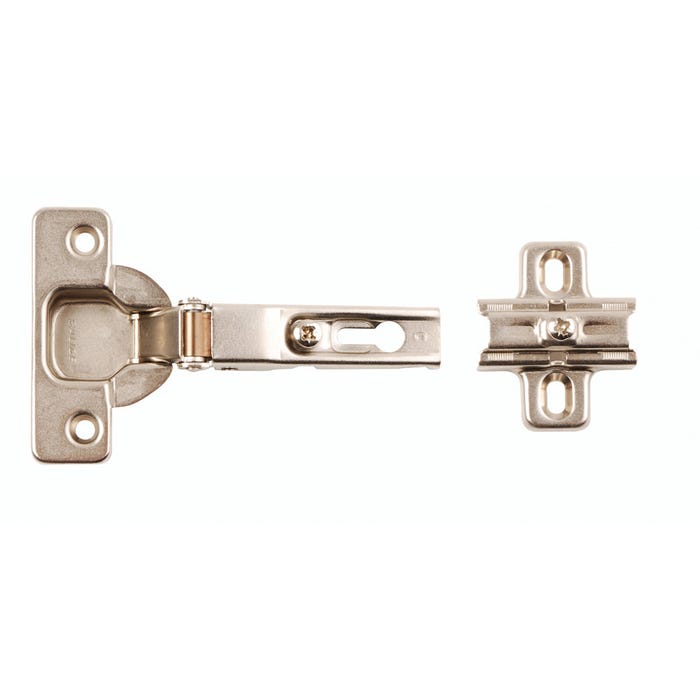

There are different types of concealed kitchen cabinet hinges, so identifying the specific type you have is important. Generally, they are either clip-on or screw-on hinges.

Step 2: Adjust the Overlay

The overlay refers to how much the cabinet door overlaps the cabinet frame. To adjust the overlay, locate the screw on the hinge arm that controls the side-to-side movement. Use a screwdriver to turn the screw clockwise to increase the overlay or counterclockwise to decrease it.

Step 3: Adjust the Depth

The depth adjustment controls how far the door sits back into the cabinet. Locate the screw on the hinge cup that controls the front-to-back movement. Turn the screw clockwise to move the door back or counterclockwise to move it forward.

Step 4: Adjust the Height

Height adjustment is necessary to align the door vertically. Locate the screw on the hinge cup that controls the up-and-down movement. Turn the screw clockwise to raise the door or counterclockwise to lower it.

Step 5: Adjust the Tension

Tension adjustment affects how tightly the door closes. Locate the screw on the hinge arm that controls the closing tension. Turn the screw clockwise to increase tension or counterclockwise to decrease it. If the door is too loose, the tension needs to be increased. If it's too tight, the tension should be decreased.

Tips:

Always make small adjustments and check the results before making further changes.
If you have difficulty adjusting the hinges, contact a professional cabinet installer.
Regularly inspect and adjust your cabinet hinges to ensure they are working properly.
